  제품명 : Air/Liquid Pressure switch & Transmitter
  모델명 : SDT Series
  제조업체 : 울파기술(주)
  가격 : 견적가
  결재방법 :
  최소주문량 :
  납기 : 협의
  운송방법 :
  반품여부 : 가능
  담당부서 / 담당자 : /
  연락처 :





   GENERAL

     Maximum Pressure............Refer to Pressure Range Table
     Media Compativility.........Air and Liquid  gases
     Pressure Range..............0 to 5000PSI or Equivalent

   ELECTRICAL

     Power Supply................220VAC 50 ~ 60Hz(opt. 110VAC)
     Relay Contact...............Screw terminal block
     Display.....................4 digit LED
     Warm-up Time................10 minutes

   ELECTRICAL(Switches)

     Power Supply................110 / 250VAC 50 ~ 60Hz
     Relay Contact...............2 SPDT (NC - COM - NO)
     Contact Rating..............10A @ 110VAC, 6A @ 250VAC
     Connection..................6 screw terminal block
     Level Setting...............Adjustable HIGH & LOW level

   ELECTRICAL(Transmitter) (SIT only)

     Connections.................2 screw terminal block
     Output Siganl...............4-20 mA DC limited at 30mA DC
     Loop  Resistance............0-1100 ohms
     Zero and Span Adjustment....Panel Adjustable

   PERFORMANCE AT 23℃

     Zero Output.................4 mA
     Full Span Output............20 mA
     Accuracy..................±0.25% FS (Includes Linearity,
                                  Hysteresis & Repeatability)
     Operating Temperature.......-10℃ ~ +70℃

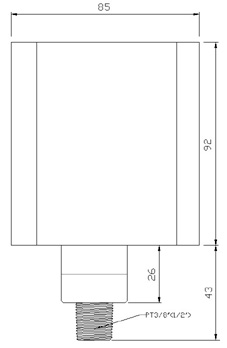

   MECHANICAL

     Pressure Connections........1/8", 1/4", 3/8", 1/2 PT male
     Materials...................Aluminum Case, Connection S316
