GENERAL

     Maximum Pressures............Refer to Pressure Range Table
     Media Compativility..........Air and non-corrosive gases
     Pressure Range...............0 to 10, 50, 200, 700, 3000mmH2O
                                  or Equivalent, up to 150 PSI
   ELECTRICAL

     Power Supply.................Ext.12-35VDC 2, 4wire
                                  18-26VAC 4 wire
     Connection...................4 screw terminal block
     Output Signal................4-20 mA DC(limited at 30mA DC)
     Loop Resistance..............0-1100 ohms(MAX 35VDC)
     Warm-up Time.................10 minutes


   PERFORMANCE AT 23℃

     Zero Output..................4 mA
     Full Span Output.............20 mA
     Accuracy.....................±0.5% ,±1.0% FS(Includes Linearity,
                                   Hysteresis & Repeatability)
     Operating Temperature........0 to 50℃

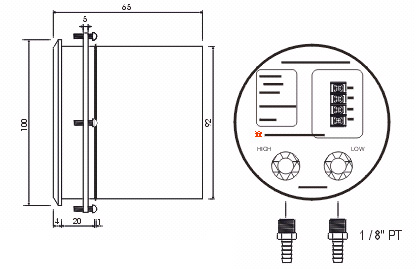

   MECHANICAL

     Span and Zero Adjustments....Multi-turn potentiometers
     Pressure Connections.........1/8" PT female
     Materials....................Aluminum Case

   STANDARD ACCESSORIES

     Two(2) 1/8" PT plugs for duplicate / Snapring
     Mounting ring, four(4) mounting screws
