| SPECIFICATION
MEDIA SUS316 Compatible Liquid & Gases

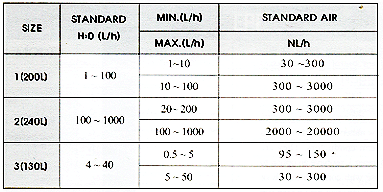

RANGE Refer to Range Ssllectio Table
PERFORMANCE
Accurracy +/-0.25% FS +/-1Digit
Compensated Temo Range -15~50 ℃
Operating Temp Range -20~80 ℃
ELECTRICAL
Display 4 Digit LED DISPLAY
Exitation 18~26VDC (Opt.AC Free Volt)
Analog Out Put(SLTD,SITD oniy) 4~20mA (2Wire),1~5V(4Wire)
Switch Out Put(SLTD,SDSD oniy) 2SPDT relay
Electrical Connection Eyelet Terminal
PHYSICAL
Proof Pressure Refer to Range Sellection Table
Line(Common Mode) Pressure Refer to Range Sellection Table
Pressure Port PT 1/4" Female
Wetted Part Material Stainless Steel 316L, VITON O-Ring
Potection Ex d IIB+H2 T4(방폭)
Weight Approx. 1.0 Kg
|
 |
 |
|
|
