| Ports
- FNPT 1/4"
Leak Rate Certification
- to 2x10-8 atm cc/sec Helium available.
Body Materials
- Brass
Bonnet Material
- Nickel Plated Brass
Diaphragm
- Stainless steel 316L
Valve
- Stainless steel 316L
Valve Spring
- Stainless steel 316L
Valve Seat
- Teflon (Kel-F, Polyimide, etc.. Optional)
Inlet Pressure Ranges
- Model 072B-0025L-1S, 3,500psig (238bar)
Inlet Pressure Ranges
- Model 072B-0025L-1S-5, 500psig (35bar)
Outlet Pressure Ranges
- 1-25psig (.1-1.7bar)
Self-Vanting
- Model 072B-0025L-1S-V, Optional
Operating Temperature
-40°C - +70°C (-40°F - +165°F)
+200°C - +540°C (+328°F - +1000°F) Optional

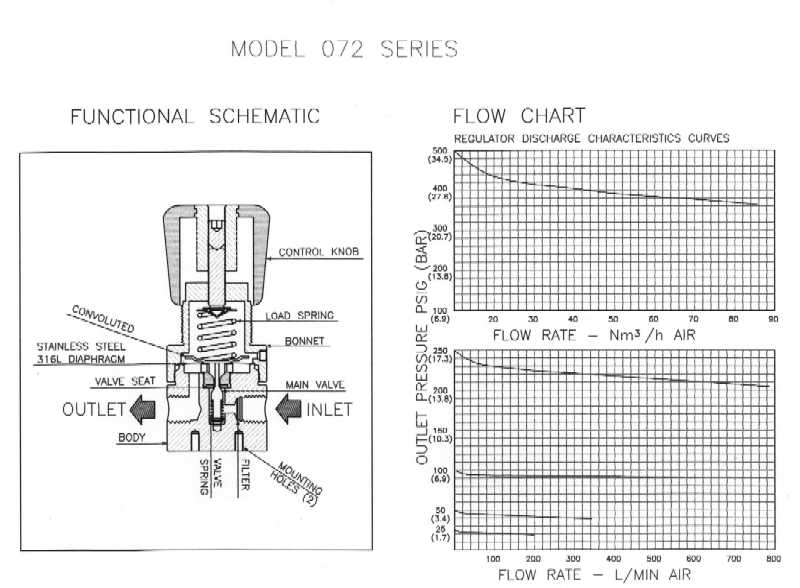

Flow Capacity
- Cv=.06(Optional Cv=.０25, 0.2 etc)
Standard Optional
- CGA and Outlet Gauge, etc..
|
 |
 |
|
|
