PHYSICAL DATA
Maximum Temperature: 170°F (76°C)
Pressure Connection: ¼" NPT(F)
Electrical Ratings: 1/8 HP, 12A @ 125 VAC resistive; ¼ HP, 12A @ 250 VAC
resistive; 0.5A @ 125 VCD resistive
Wiring Connections: 3 Screw type; N. O., N. C., and Common
Setpoint Adjustment: Internal thumbwheel with visible scale
Housing: Die cast copper free aluminum - weatherproof
Diaphragm: Polyimide, Teflon® or 316 stainless steel
Calibration Spring: Plated Steel

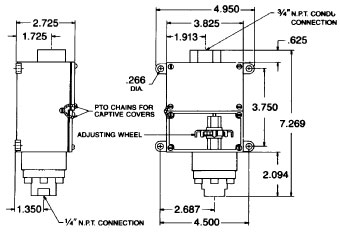

Mounting: 4 holes to accept ¼" bolts
Weight: 3 lbs. (1.4 kg)
Installation: Any position
|
