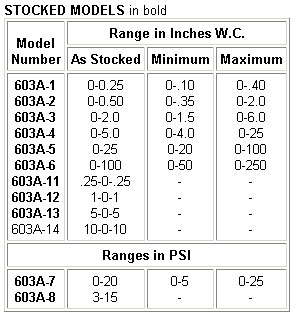

PHYSICAL DATA
GENERAL
Maximum Pressure: 35 PSIG (2.46 kg/cm²)
Media Compatibility: Air and non-combustible, non-corrosive gases
ELECTRICAL
Power Supply: 13-35 VDC - 2, 3 or 4 wire, 18-26 VAC - 4 wire
Connections: 4 screw terminal block
Output Signal: 4-20 mA DC (limited at 38 mA DC)
Loop Resiseance: DC; 0-1100 ohms, AC- 0-1130 ohms
Warm-up Time: 10 minutes
Current Consumption: DC; 38 mA max., AC; 76 mA max.

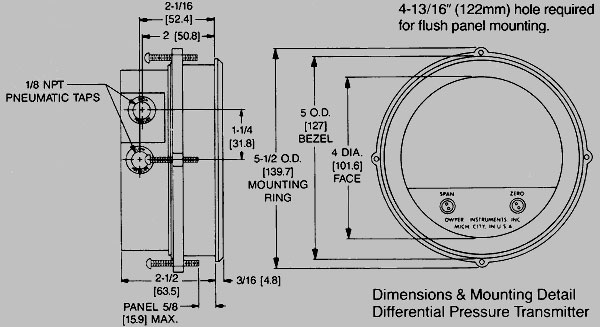

MECHANICAL
Weight: 1 lb., 10 oz. (.74 kg)
Span and Zero Adjustments: External potentiometers
Pressure Connections: 1/8" NPT female
Materials: Die cast aluminum case, silicone diaphragm, acrylic cover
PERFORMANCE AT 70°F (21.1°C)
Zero Output: 4 mA DC
Full Span Output: 20 mA DC
Span: 16 mA DC
Accuracy: (Includes linearity, hysteresis and repeatability) ±2% of full span
output
Stability: ±1% F.S./year
ENVIRONMENTAL
Operating Temperature: 20-120°F (-6.7 to 49°C), dry air
Thermal Error: ±1%/50°F typical
STANDARD ACCESSORIES
Mounting ring, snap ring, (4) 6-32 x 1 ¼ round head machine screws (3) 6-32 x
5/16" round head machine screws, (2) adapters, 3/16" I.D. tubing 1/8" NPT pipe
plugs and adjustment key for span and zero.
|
