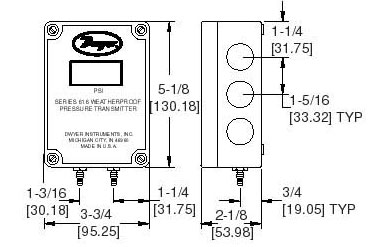

PHYSICAL DATA
PERFORMANCE AT 70°F (21.1°C)
Accuracy: ±0.5% F.S.
Stability: ± 1% FS/year.
Zero Output: 4 mA DC.
Full Span Output: 20 mA DC.
Span: 16 mA DC
Warm-up time: 10 minutes.
Power Supply: 10-35 VDC (2. 3. or 4 wire), 16-26 VAC (4 wire).
Output Signal: 4-20 mA DC (limited at 38 mA DC).
Loop Resistance: DC; 0-1300 Ohms maximum, AC; 0-1200 Ohms maximum
Current Consumption: DC; 38 mA maximum. AC; 76 mA maximum.
Electrical Connections: Screw Type terminal block.
Operating Temperature: 20 to 120°F (-6.7 to 49°C).
Thermal Errors: ±0.02%/°F typical.
Media compatiblity: Air and compatible, non-corrosive, non-combustible gases.
Pressure Connection: Barbed, dual size to fit 1/8" and 3/16" (3.2 and 4.8 mm)
I.D. rubber or vinyl tubing.
Housing: Gray Polycarbonate, NEMA 4X enclosure.
Adjustments: Potentiometers for zero and span.
Weight: 10 ounces (283 grams).
