  Á¦Ç°¸í : Proportioning Solenoid Valve
  ¸ðµ¨¸í : Series SVP
  Á¦Á¶¾÷ü : w.e.lnderson
  °¡°Ý : °ßÀû°¡
  °áÀç¹æ¹ý : Çö±Ý
  ÃÖ¼ÒÁÖ¹®·® : 1
  ³³±â : ÇùÀÇ
  ¿î¼Û¹æ¹ý : ÇùÀÇ
  ¹ÝÇ°¿©ºÎ : °¡´É
  ´ã´çºÎ¼­ / ´ã´çÀÚ : ¿µ¾÷ºÎ / ±èº´¼®
  ¿¬¶ôó : 02-2637-0637(011-337-8497)

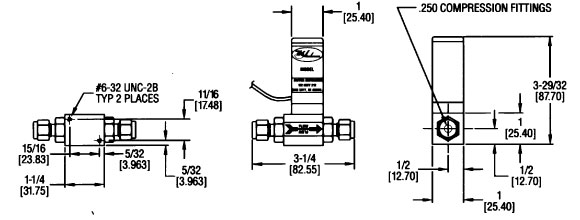

PHYSICAL DATA

Voltage Input:    0-24 VDC
Max Operating Current:    400 mA
Electrical Connections:    Male spade type
Wetted Materials:    316 and 416 stainless steel, Viton O-rings
Maximum Pressure:    500 psig (34.45 bar)
Maximum Differential Pressure:    50 psid (3.45 bar)
Process Temperature Limits:    -40 to 174¡ÆF (-40 to 79¡ÆC)
Ambient Temperature Limits:    -40 to 130¡ÆF (-40 to 54¡ÆC)
Type of Operation:    Normally closed valve will close when de-energized
Connections:    ¨ù" compression fitting
Weight:    12 ounces (340 grams)

MODEL

NO.

ORIFICE

IN.(MM)

Cv

MAXIMUM FLOW*

AIR

SCFH(LPM)

WATH GPH

(CC/M)

SVP-1

SVP-2

SVP-3

SVP-4

0.020(0.51)

0.040(1.02)

0.055(1.40)

0.063(1.60)

0.009

0.033

0.055

0.068

7.4(3.5)

27.5(13)

45.6(21.5)

53(25)

2.0(125)

6.4(400)

11.1(700)

13.5(850)
