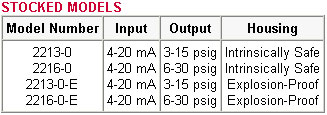

PHYSICAL DATA

Output:    3-15 psig (.21-1.1 kg/cm2), 6-30 psig (.42-2.1 kg/cm2)
Supply:    20 (±2) psig for 3-15 psig; 1.4 (±0.14) kg/cm2 for 0.21-1.1 kg/cm2 output
35 (±2) psig for 6-30 psig: 2.5 (±0.14) kg/cm2 for 0.42-2.1 kg/cm2 output
Connection:    1/4" NPTF supply port (1) and 1/4" NPTF output port (2). 1/2"
               NPTF electrical conduit connection
Output Capacity:    4.0 scfm (1.9 I/s)
Air Consumption:    0.04 scfm (.02 I/s) steady state average; 0.06 scfm (.031
                   I/s) maximum
Operational Mode:    Direct, reverse, and/or split range (field- selectable)
Failure Mode:    Transducer always fails in the direct mode (i.e., if input
current drops below 3.7 mA DC the output will drop to 1 to 2 psig regardless of
direct or reverse mode selection)
Enclosure:    internally purged NEMA 4X cast/machined aluminum with powder coat
 epoxy
Weight:    2.5 lbs. (1.13kg)
ELECTRICAL
Input:    4-20 mA
Operating current:    3.7 mA minimum, 200 mA maximum
PERFORMANCE
Accuracy:    ±0.15% of span (3-15 psig, 0.21-1.1 kg/cm2)
±0.25% of span (6-30 psig. 0.42-2.1 kg/cm2)
Repeatability:    0.05% of span
Deadband:    0.02% of span
Stability:    0.5% of span/6 months
Vibration Effect:    less than 0.25% from 1-200 Hz/1g
Frequency Response:    -3db at 5 Hz
Loop Load:    3.8 VDC +5 ohms (195 ohm load at 20 mA)
Operating Temperature:    -20 to 150°F (-29 to 66°C)
Temperature Effect:    less than 1% per 100°F (55°C)
RFI-EMI Effect:    per SAMA PMC 33.1 standard (b), (c) 20 to 100 MHz, Class 3
effect on zero & span less than 1%
