PHYSICAL DATA
Maximum Temperature: 212°F (100°C)
Maximum Pressure: 150 psig (10.3 bar)
Process Connection: 1" NPTM
Switch Type: SPDT snap acting
Electrical Rating: 5A @ 125/250 VAC
Wire Leads: 18 AWGx18" (45.7 cm)

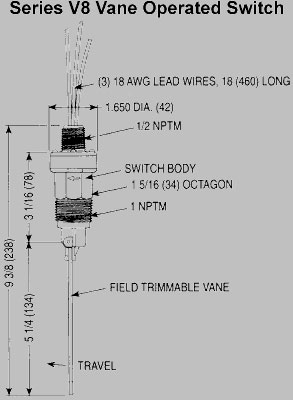

Overall Length: 9.375 in. (23.8 cm)
Switch Body: Polyphenylene sulfide (PPS)
Wetted Materials: Polyphenylene sulfide, ceramic 8 magnet, 316SS
Vane: Field trimmable
Installation: Install with index arrow pointing in direction of flow
Weight: 4.5 ounces (128 grams)
|
