  Á¦Ç°¸í : Photohelic and Gapsu-photohelic pressure Swith/Gag

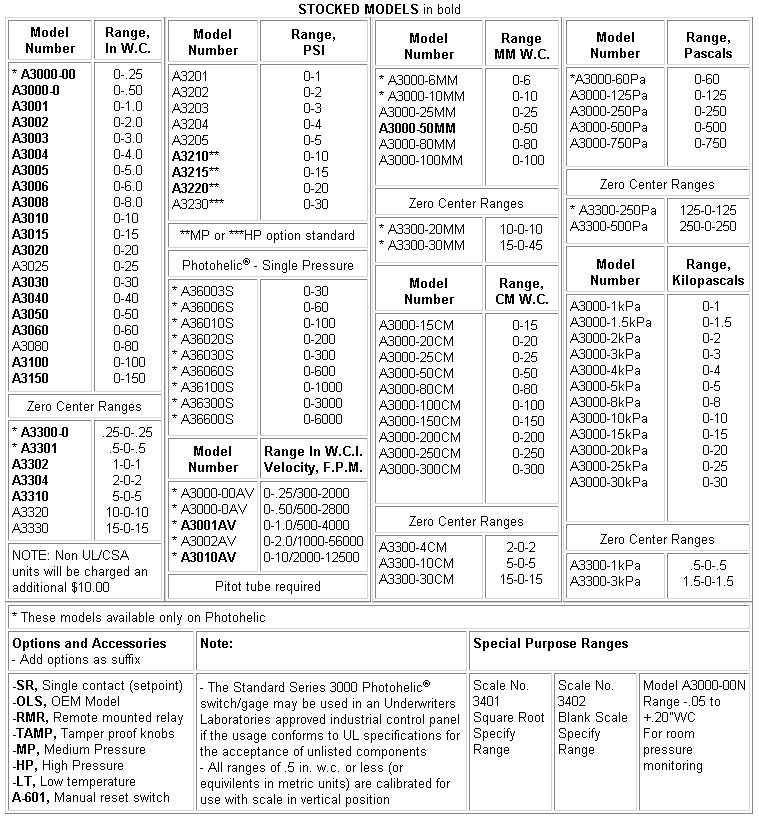

  ¸ðµ¨¸í : Serise A3000/43000
  Á¦Á¶¾÷ü : Dwyer(¹Ì±¹)
  °¡°Ý : °ßÀû°¡
  °áÀç¹æ¹ý :
  ÃÖ¼ÒÁÖ¹®·® : 1
  ³³±â : ÇùÀÇ
  ¿î¼Û¹æ¹ý :
  ¹ÝÇ°¿©ºÎ : °¡´É
  ´ã´çºÎ¼­ / ´ã´çÀÚ : ¿µ¾÷ºÎ / ±èº´¼®
  ¿¬¶ôó : 02-2637-0637





PHYSICAL DATA
Ambient Temperature: 20 to 120¡ÆF. (-6.7 to 49¡ÆC) Low temperature option
available.
Rated Pressure: -20" Hg. to 25 psig (-.67 to 1.7 bar). MP option; 35 psig (2.4
bar), HP option; 80 psig (5.5 bar). 36003S-36010S; 150 psig (10.3 bar). 36020S
and higher; 1.5 x full scale pressure.
Accuracy: ¡¾2% of full scale at 70¡ÆF (21 .1¡ÆC). 3% on -0 and 4% on -00 models.
Gage Connections: 1/8" NPT(F).
Power Required: 120 VAC, 50/60 Hz
Electrical Rating of Relays: 10 A @ 120 VAC, 6 A @ 240 VAC, 60 Hz res.
Conduit Opening: ¨ú" conduit.
Finish: Dark gray
Weight: Photohelic, 4 lbs. (1.8 kg). Use with air or compatible gases only.


A/S°¡´É
