PHYSICAL DATA

Media:    Air, nitrogen, or non-corrosive, non-combustible gases
Accuracy in Point Velocity:    ±2% FS over 32 to 122°F (0 to 50°C) and 5 to 30 psia (0.35 to 2 kg/cm2)
Repeatability:    ±0.2% full scale
Response Time:    0.2 seconds to 63% of final velocity value
Gas Pressure:    100 psig (7 kg/cm2 G) maximum
Gas Temperature:    0 to 150°F (-18 to 66°C)
Supply Voltage:    24 VAC, 0.5 A
Output:    4-20 mA nonlinear; proportional to gas mass velocity
Load Resistance:    50 ohms minimum, 500 ohms maximum
Operating Temperature Range:    32 to 122°F (0 to 50°)
Wetted Parts:    304 SS probe, glass coated sensor, epoxy

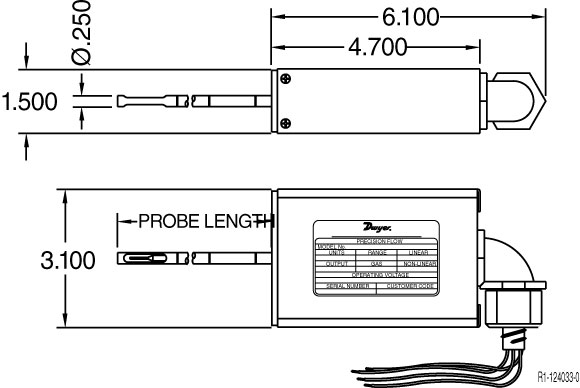

Probe Dimensions:    ¼" (6.35 mm) O.D., 13 (33 cm) length
Housing:    Dustproof NEMA 2 anodized aluminum
Electrical Connection:    ¾" NPT conduit connection
Mounting:    ¼" compression fitting (not included)
Weight:    0.7 lbs (0.30 kg)
