PHYSICAL DATA

Accuracy:    ±1% FS, ±0.5% of reading over 32 to 122°F ( 0 to 50°C) and 5
to 31 psia (0.35 to 2 kg/cm2)
Repeatability:    ±0.2% of F.S.
Response Time:    0.2 seconds to 63% of final velocity value
Gas Pressure:    150 psig (10 kg/cm2 G) maximum
Gas Temperature:    -40 to 250°F (-40 to 121°C)
Supply Voltage:    15 to 18 VDC, 300 mA maximum
Output:    4 to 20 mA, linear
Loop Resistance:    400  maximum
Operating Temperature:    32 to 122°F (0 to 50°C)
Wetted Parts:    304 SS probe, glass coated sensor, epoxy
Storage Temperature:    32 to 158°F (0 to 70°)

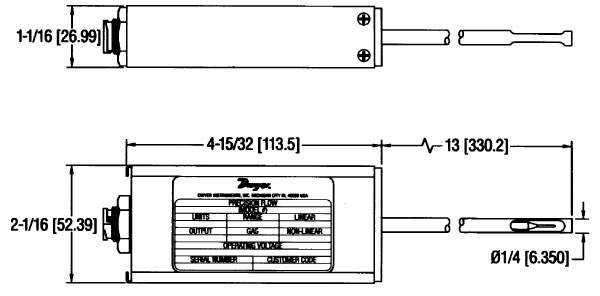

Probe Dimensions:    ¼" (6.35 mm) O.D., 13" (33cm) length
Electrical Connections:    Four wire standard connector
Weight:    0.0 lbs. (0.30 kg)
