PHYSICAL DATA
Temperature Limits: 220°F (107°C) max.
Operating Pressure: (Polypropylene float) to 2000 PSIG (140kg/cm2) (304SS
float) to 350 PSIG (25kg/cm2).
Electrical Rating: UL.: 5A @ 125/250 VAC. C.S.A. and CENELEC: 5A @125/250 VAC,
 5A resistive, 3A inductive @ 30 VDC. Optional ratings: MV option, (gold
contacts for dry circuits) 0.1A @ 125 VAC. MT option (temperatures to 400°F,
 205°C), 5A @ 125/250 VAC. Not UL or CSA listed.
Wiring Connections: 18" (460mm) leads, 18 gauge.
Minimum Specific Gravity: (Polypropylene float) 0.9 S.G. (round SS float) 0.7
 S.G. (cylindrical SS float) 0.5 S.G.
Wetted Materials: Style B-S-3-0. Brass 301SS, Polypropylene, Ceramic. Style B-S-
3-A, Style B-S-3C; Brass 301SS, 304SS Ceramic. Style S-S-3-0; 303SS, 301SS,
Polypropylene, Ceramic. Style S-S-3-A, S-S-3-C; 303SS, 301SS, 304SS, Ceramic.

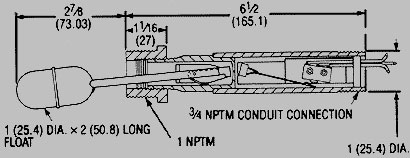

Switch Body: Brass 3/4" NPT conduit connection. For S.S. switch housing change
model number to L6EPS.
Piping Connection: 1" NPT.
Installation: Horizontal w/index arrow pointing down.
Weight: Appx. 1 Ib. (.5kg); appx. 1 3/4 lb. (.8kg) w/external chamber.

STOCKED MODELS




Model No.*
Body
Installation
Float
Pressure
Rating, PSI(KG/CM2)
Minimum
Specific Gravity

L6EPB-B-S-3-0
Brass
Side Wall Mounting
Solid Polypropylene
1000( 70)
0.9

L6EPB-B-S-3-A
Brass
Side Wall Mounting
Stainless Steel - Cyl.
200( 14)
0.5

L6EPB-B-S-3-C
Brass
Side Wall Mounting
Stainless Steel - Rd.
350( 25)
0.7

L6EPB-B-S-3-B
Brass
With External Float Mounting
Solid Polypropylene
250( 18)
0.9

L6EPB-B-S-3-H
Brass
With External Float Mounting
Stainless Steel - Rd.
250( 18)
0.7

L6EPB-S-S-3-O
Stainless Steel
Sidewall Mounting
Solid Polypropylene
2000(140)
0.9

L6EPB-S-S-3-A
Stainless Steel
Sidewall Mounting
Stainless Steel - Cyl.
200( 14)
0.5

L6EPB-S-S-3-C
Stainless Steel
Sidewall Mounting
Stainless Steel - Rd.
350( 25)
0.7

L6EPB-S-S-3-S
Stainless Steel
With External Float Chamber
Solid Polypropylene
2000(140)
0.9

L6EPB-S-S-3-L
Stainless Steel
With External Float Chamber
Stainless Steel - Rd.
350( 25)
0.7
