| GENERAL
Maximum Pressure Rated Range x 2
Media Compatibility 공기 및 비부식성기체
Pressure Range Model별 Range표 참조
ELECTRICAL
Power Supply DC24V(100-.220VAC 50~60Hz)
Connections 2 screw terminal block
Display 4 Digit LED
Warm up Time 15 minutes
SWITCH
Relay Contact 2 SPDT(NC - COM - NO)
Contact Rating 5A@240VAC
Connections 6 Screw terminal block
Level setting Switch 1 & 2 각각 독립 레벨
설정
PERFORMANCE AT 23℃
Zero Adjust One touch Adjust able on panel
Accuracy ±0.25% FSO(Includes Linearity,
Hysteresis & Repeatability)
Operating Temperature 0 to 70℃

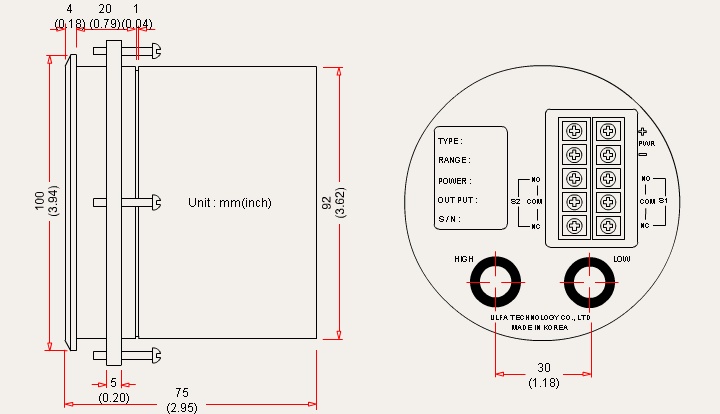

MECHANICAL
Pressure Connections 1/8" PT female
Materials ABS mold resin
Weight 600g
STANDARD ACCESSARIES
Tow(2) 1/8"PT plugs for duplicate/Snap ring Mounting ring,
four(4) mounting screws
|
 |
 |
|
|
