  Á¦Ç°¸í : LCD Display Air/Liquid Pressure Transmitter
  ¸ðµ¨¸í : SDT series
  Á¦Á¶¾÷ü : ULFA
  °¡°Ý : °ßÀû°¡
  °áÀç¹æ¹ý :
  ÃÖ¼ÒÁÖ¹®·® : 1
  ³³±â : ÇùÀÇ
  ¿î¼Û¹æ¹ý : ÇùÀÇ
  ¹ÝÇ°¿©ºÎ : °¡´É
  ´ã´çºÎ¼­ / ´ã´çÀÚ : ¿µ¾÷ºÎ / ±èº´¼®
  ¿¬¶ôó : 02-0267-0637(011-337-8497)





GENERAL

     Maximum Pressures............Refer to Pressure Range Table
     Media Compativility..........Air and Liguid,gases
     Pressure Range...............0 to 5000PSI Equivalent
   ELECTRICAL

     Power Supply.................Ext.12-35VDC 2, 4wire
                                  18-26VAC 4 wire
     Connection...................4 screw terminal block
     Output Signal................4-20 mA DC(limited at 30mA DC)
     Loop Resistance..............0-1100 ohms(MAX 35VDC)
     Warm-up Time.................10 minutes
     Display......................3 1/2 digit LCD


   PERFORMANCE AT 23¡É

     Zero Output..................4 mA
     Full Span Output.............20 mA
     Accuracy...................¡¾0.25% FS(Includes Linearity,
                                   Hysteresis & Repeatability)
     Operating Temperature........-10¡É ~ +70¡É

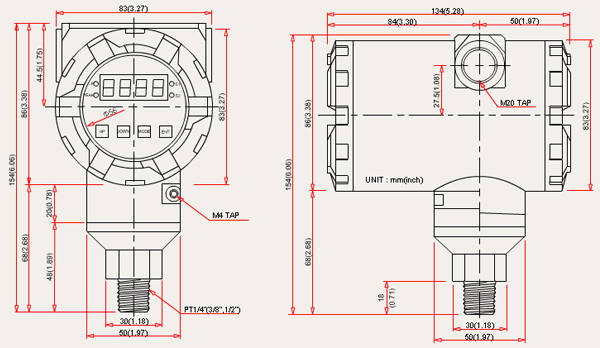

   MECHANICAL

     Span and Zero Adjustments....Multi-turn potentiometers
     Pressure Connections.........1/8",1/4", 3/8", 1/2 PT male
     Materials....................Aluminum Case,Connection S316
