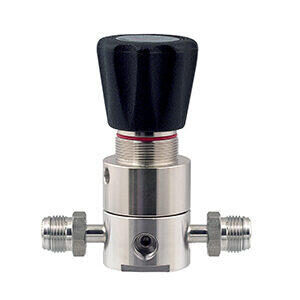

DRA100 Series

우측 내용

UHP Low Pressure VCR Type(1/4" 3/8" 1/2" 3/4")

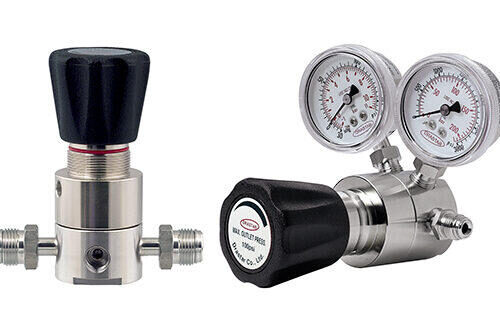

DRA100 시리즈는 초 고순도 반도체 제조용 특수 가스 라인, Bulk Gas Line, 기타 설비 라인 등에 사용하도록 개발된 UHP VCR Type Pressure Reducing Regulator입니다.

- 반도체 생산 hook-up 라인 등에 사용 가능하도록 내부 표면은 BA 15Ra급 EP 10 Ra, 5Ra급까지 처리하였습니다.
- 용도에 따라 2-ports, 3-ports 또는 4-ports를 선택, 사용 할 수 있습니다.
- 입구 압력은 최대 3000psig(210bar)이고 출구압력은 모델에 따라 5psi (0.3bar) ~ 최대 250psig(17bar)까지 사용할 수 있습니다.
- 용접, 조립, 실험, 세정 등 모든 공정은 100-class와 10-class 크린룸에서 이루어집니다.

- 사용 중 가스라인의 미세 진동 또는 외부적 요인등으로 인하여 초기 셋팅 값이 미세하게 조금씩 변하는 현상을 완전히 해결한 당사 특허 10-1370537 Push and Lock 조절 손잡이를 적용하여 사용하기에 더욱 편리합니다. 조절 손잡이를 누르면 셋팅값이 변하는 것을 완전히 방지할 수 있고, 손잡이를 앞으로 당기면 자유롭게 원하는 압력으로 다시 셋팅 할 수 있습니다.

제품 문의하기

Product Applications

-

Ordering Information

DRA100

025

BASIS SERIES NUMBER	BODY MATERIAL & SURFACE FINISH	OUTLET PRESSURE RANGE	DIAPHRAGM MATERIAL	MAX. INLET PRESSURE
DRA100	A = 316L B.A -------------- 25Ra B = 316L E.P -------------- 10Ra C = 316L E.P(P.E.P) ------- 5Ra D = 316L VAR E.P ---------- 10Ra E = 316L VAR E.P(P.E.P)---- 5Ra	025 = 1-25psi (.1-1.7bar) 050 = 1-50psi (.1-3.5bar) 100 = 1-100psi (.1-7bar) 250 = 1-250psi (.2-17bar)	S = STS 316L H = Hastelloy-C	H = 3000psi(210bar) L = 600psi(42bar)

4MS

G0S

SEAT MATERIAL	FLOW CAPACITY	INLET OUTLET PORTS SIZE Type "A" ± 1.0mm	GAUGE PORTS OPTIONS Gauge Ports
P = PCTFE T = Teflon V = Vespel	S = Cv 0.06 1/4" StandardO = Cv 0.2 1/4 " Optional S = Cv 0.2 3/8 " Standard S = Cv 0.5 1/2 " Standard O = Cv 1.0 1/2 " Optional S = Cv 1.2 3/4 " Standard	4HP = 1/4" H.P.I.C4MS = 1/4" Male Swivel ---- 94mm 4FS = 1/4" Female Swivel -- 94mm 4FH = 1/4" Female Swivel -- 99mm 4FL = 1/4" Female Swivel -- 114mm 4ML = 1/4" Male Swivel ---- 114mm 8MS = 3/8" Male Swivel ---- 120mm 8FS = 3/8" Female Swivel -- 120mm 2MS = 1/2" Male Swivel ---- 140mm 2FS = 1/2" Female Swivel -- 140mm 2ML = 1/2" Male Swivel ---- 180mm 2FL = 1/2" Female Swivel -- 180mm 2FSS/2MSS=1/2" F. Male Sw.122mm 3MS = 3/4" Male Swivel ---- 160mm 3FS = 3/4" Female Swivel -- 160mm 4IMF = In 1/4" Male Out 1/4 " Female ----- 94mm 4IFM = In 1/4" Female Out 1/4 " Male ------- 94mm 2IMF = In 1/2" Male Out 1/2 " Female ----- 140mm 2IFM = In 1/2" Female Out 1/2 " Male ------- 140mm 2IMFL = In 1/2" Male Out 1/2 " Female ----- 180mm 2IFML = In 1/2" Female Out 1/2 " Male ------- 180mm 4TS = 1/4" Tube Stubs ---- 94mm 8TS = 3/8" Tube Stubs ---- 94mm 2TS = 1/2" Tube Stubs ---- 120mm 3TS = 3/4" Tube Stubs ---- 160mm	G0S = None ------------- 0 G1S = 1/4" H.P.I.C ------- 1 G2S = 1/4" H.P.I.C ------- 2 G2B = 1/4" H.P.I.C ------- 2 M1S = 1/4" Male Swivel -- 1 M2S = 1/4" Male Swivel -- 2 M2B = 1/4" Male Swivel -- 2 F1S = 1/4" Femle Swivel -- 1 F2S = 1/4" Femle Swivel -- 2 F2B = 1/4" Femle Swivel -- 2

Specification

Ports	DRA100-A100S-xxx-4MS-GxS 1/4" Male DRA100-A100S-xxx-4FS-GxS 1/4" Female DRA100-A100S-xxx-8MS-GxS 3/8 " Male DRA100-A100S-xxx-8FS-GxS 3/8 " Female DRA100-A100S-xxx-2MS-GxS 1/2 " Male DRA100-A100S-xxx-2FS-GxS 1/2 " Female DRA100-A100S-xxx-3MS-GxS 3/4 " Male DRA100-A100S-xxx-3FS-GxS 3/4 " Female
Design Pressure	150% maximum rated
Leak Rate Certification	to 1 x 10 -9 atm cc/sec Helium available.
Body Materials	DRA100-A100x-xxx-xxS-GxS 316L B.A ------------------ 25Ra DRA100-B100x-xxx-xxS-GxS 316L E.P ------------------ 10Ra DRA100-C100x-xxx-xxS-GxS 316L E.P(P.E.P) ------------5Ra DRA100-D100x-xxx-xxS-GxS 316L VAR E.P ---------------10Ra DRA100-E100x-xxx-xxS-GxS 316L VAR(P.E.P) ------------ 5Ra
Bonnet Material	Nickel Plated Brass (Stainless steel 316L Optional)
Diaphragm	DRA100-x100S-xxx-xxS-GxS STS 316L DRA100-x100H-xxx-xxS-GxS Hastelloy-C22
Main Valve	DRA100-A100S-xxx-xxS-GxS Stainless steel 316L Standard DRA100-B100H-xxx-xxS-GxS Hastelloy-C22 Optional
Valve Spring	DRA100-A100S-xxx-xxS-GxS Stainless steel 316L Standard DRA100-B100H-xxx-xxS-GxS Hastelloy-C22 Optional
Valve Seat	DRA100-B100S-xPx-xxS-GxS PCTFE DRA100-B100S-xTx-xxS-GxS Teflon DRA100-B100S-xVx-xxS-GxS Vespel
Inlet Pressure Ranges	DRA100-A100S-Hxx-xxS-GxS 3000psi(210bar) DRA100-A100S-Lxx-xxS-GxS 600psi(42bar)
Outlet Pressure Ranges	DRA100-x025x-xxS-xMS-GxS 25psi(1.7bar) DRA100-x050x-xxS-xMS-GxS 50psi(3.4bar) DRA100-x100x-xxS-xMS-GxS 100psi(7bar) DRA100-x250x-xxS-xMS-GxS 250psi(17bar)
Operating Temperature	PCTFE -40°C ~ +60°C (-40°F ~ +140°F) Teflon -40°C ~ +70°C (-40°F ~ +165°F) Vespel -40°C ~ +170°C (-40°F ~ +350°F)
Flow Capacity	DRA100-x100x-xxS-4MS-GxS 1/4" Cv=0.06 DRA100-x100x-xxO-4MS-GxS 1/4" Cv=0.2 DRA100-x100x-xxS-8MS-GxS 3/8 " Cv=0.2 DRA100-x100x-xxS-2MS-GxS 1/2 " Cv=0.5 DRA100-x100x-xxO-2MS-GxS 1/2 " Cv=1.2 DRA100-x100x-xxS-3MS-GxS 3/4 " Cv=1.2

권장사항
각 제품들은 최고의 안전성과 쉬운 조작성을 고려하여 제작되었습니다. 그러나 가장 안전하고 효율적인 Regulator 사용을 위해서는 실제 사용 압력을 각각 모델의 사용 압력에 25% ~ 75% 이내에서 사용하면 가장 이상적인 압력을 사용할 수 있습니다, 정밀하고 원활한 동작과 제품의 수명 연장을 위해서는 모델에 따라 범위 내에서 사용하기를 적극 권장합니다.
