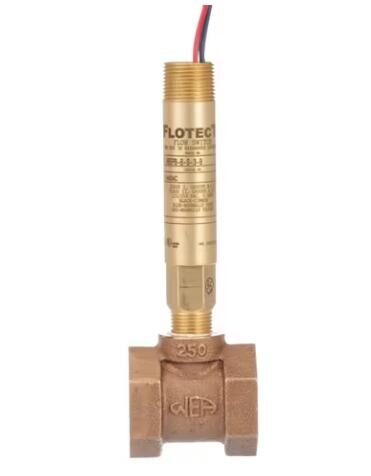

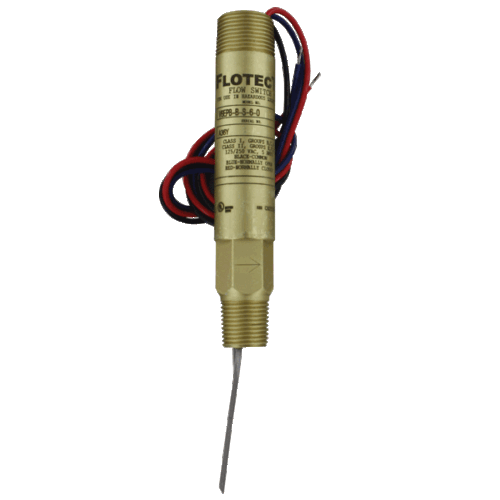

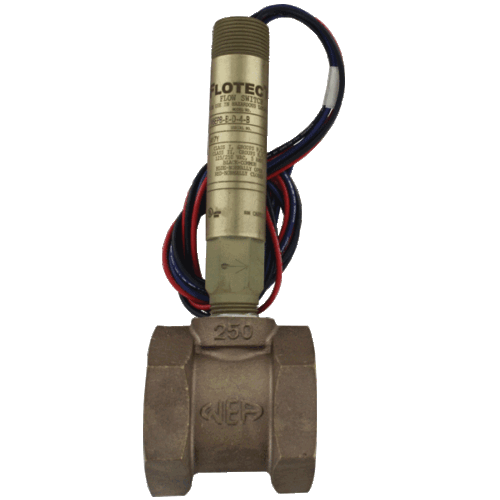

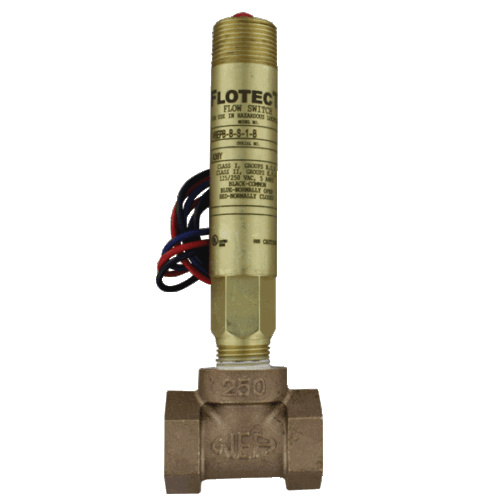

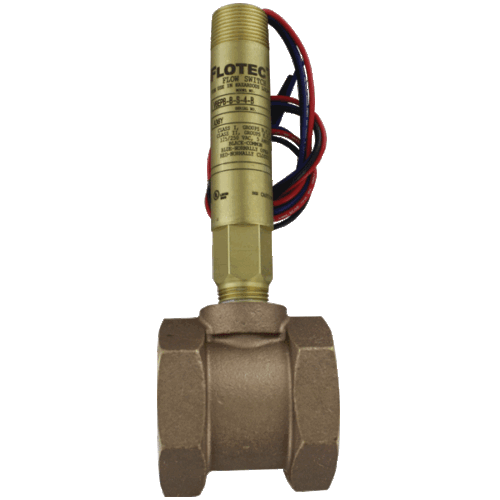

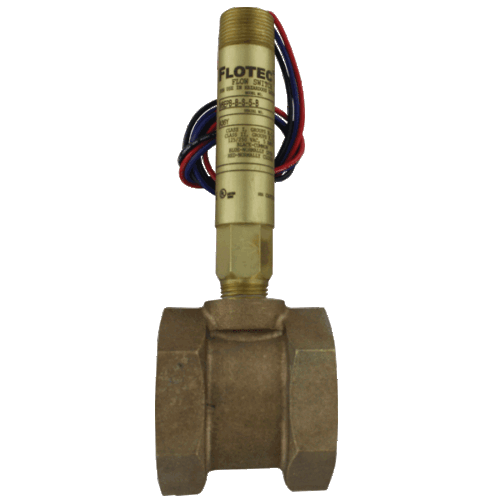

Series V6 Flotect® Mini-Size Flow Switches
Monitor Flow in 1/2" to 2" (12.70 to 50.80 mm) Pipe, Explosion-Proof, Compact

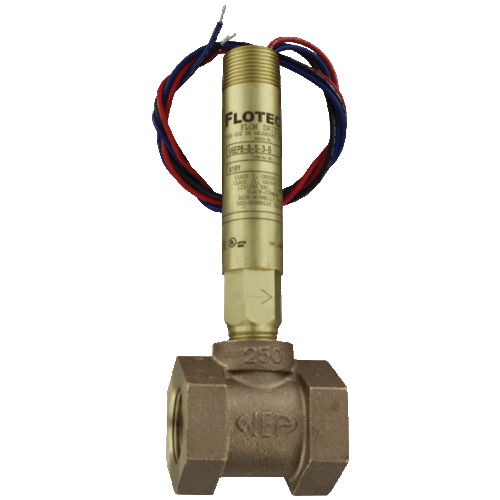

The Series V6 Flotect® Flow Switch is surprisingly compact, and specifically engineered to monitor liquid, gas, or air flows. Time tested in thousands of pipeline installations and processing plants around the world, this Series is Weatherproof, designed to meet NEMA 4 and Explosion-proof (listing included in specifications). Tees are available for installation in pipelines from 1/2" to 2" (12.70 to 50.80 mm). With bushings added the unit is easily adapted to 1/4" and 3/8" (6.35 and 9.53 mm) piping.

California Residents: Click Here for Proposition 65 WARNING.

제품 문의하기

Product Applications

Protects pumps, motors and other equipment against low or no flow
Controls sequential operation of pumps
Automatically starts auxiliary pumps and enginesStops liquid cooled engines, machines and processing when coolant flow is interruptedShuts down burner when air flow through heating coil fails
Controls dampers according to flow
Signals alarm when emergency shower or eyewash station in use
